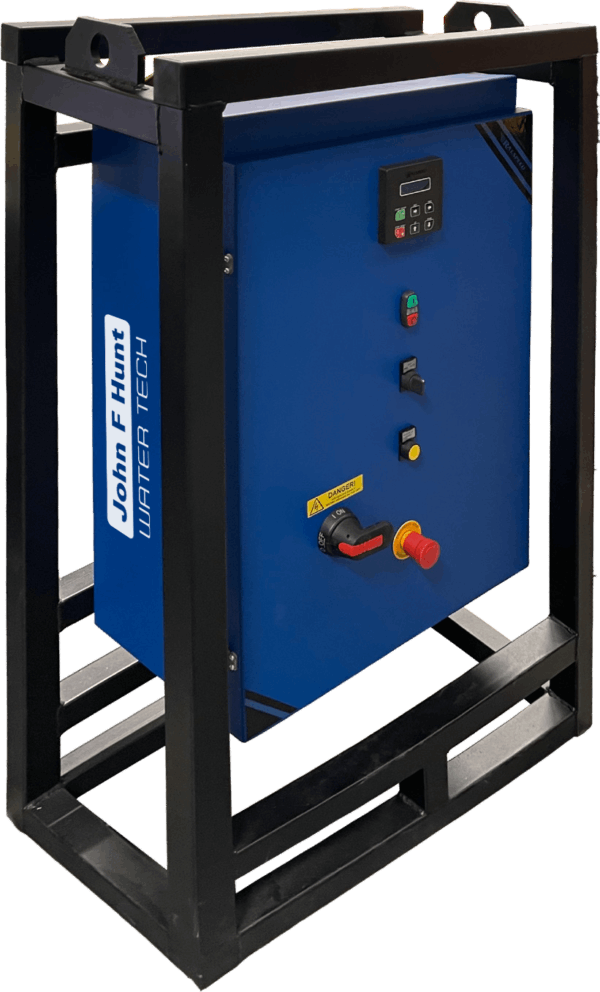

Ralspeed TQM2KC-56 Soft Starter System
Available forHireOnly
Specifications
| Incoming supply | Up to 400a |
| Frame size (L × W × H) | 1400 × 850 × 420 mm |
| Enclosure size (L × W × H) | 860 × 650 × 280 mm |
| Board enclosure | IP54 |
| Sockets | IP67 |
| Weight | 120 kg (Spec dependent) |
| Interchangeable Outgoing ways | IP67 sockets 16a 1 phase, 32a 1ph, 63a 1ph, 16a 3ph, 32a 3ph, 63a 3ph |
| Outgoing protection | MCB type C or D, RCBOs, earth leakage modules |
Additional Features
- Lockable door
- Full length lifting pockets
- Full width rear braces
- Power lock, 125a a 3ph or blank plate incomer
Example Configuration
- 200a incoming isolator switch
- 2 × 16a 3ph IP67 sockets protected by 2 × 16a 1phRCBOs
- 8 x 32a 1ph IP67 sockets protected by 8 x 32a 1ph RCBOs.
- 2 x 63a 1ph IP67 sockets protected by 2 x 63a 1ph MCBs 2 x earth leakage modules.
