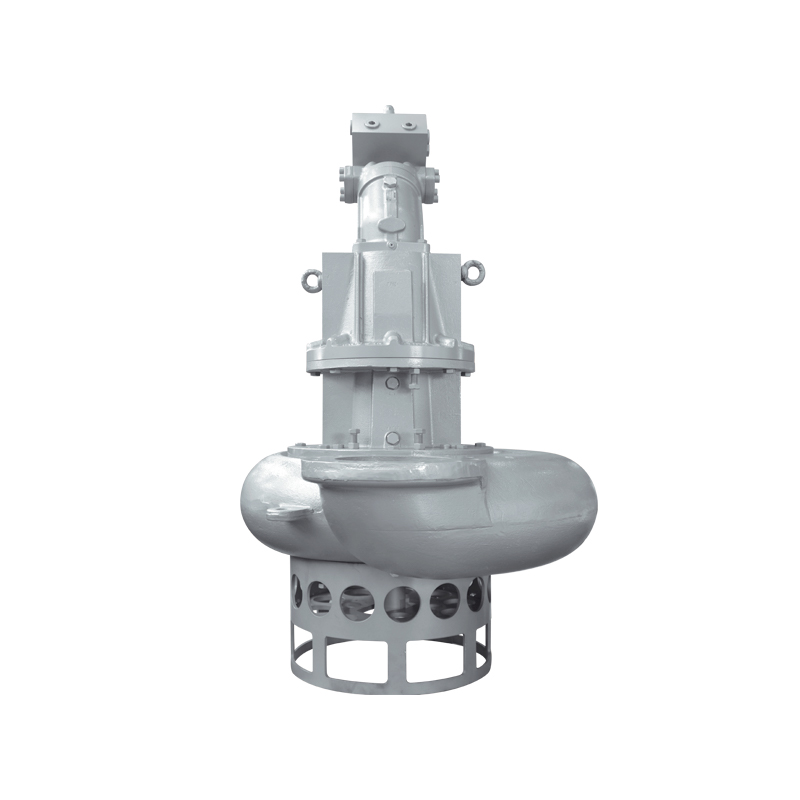

Dragflow Hydraulic Pump – HY85/160
Available forSaleOnly
The HY85/160 is an hydraulic pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.
Main characteristics
- High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
- Low rotation speed: reduced wear and long term efficiency.
- Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.
HY85/160 Characteristics Curve
Dimensions and Weight
Specifications
Model | HY85/160 | |
Brake Power | 120 kW | 165 HP |
Efficiency [%] | 51 | |
RPM Max | 1450 | |
Motor Displacement [cc] | 160 | |
Oil flow rate max [l/min] | 240 | |
Nominal pressure [bar] | 300 | |
Max pressure [bar] | 350 | |
Solid handling | 60 mm | 2.4″ |
Discharge | DN 200 | PN10 |
Materials
Part | Standard |
Casing | Cast Iron EN-GJS500 |
Body | Cast Iron EN-GJL250 |
Wear Parts Minimum hardness [HB] | High chrome EN-GJN-HV600 (CH6) 550 |
Main shaft | High tensile 39NiCrMo3 |
PH Range | 5-10 |
Seals and Lubricants
Version | EL85/160 | MG | MS |
Motor Side | LIPS | MECHANICAL | MECHANICAL |
Impeller Side | LIPS | LIPS | MECHANICAL |
Oil type | EP320 | ISO32 | ISO32 |
Electrical motor
Service line Ports: SAE J518 1 1/4in
Case drain Port: DIN3852 M22x1,5
Service line Ports: SAE J518 1 1/4in
Case drain Port: DIN3852 M22x1,5
Operating Conditions
Max liquid temperature 40°C
Min Submersion depth 440mm
Max liquid temperature 40°C
Min Submersion depth 440mm
