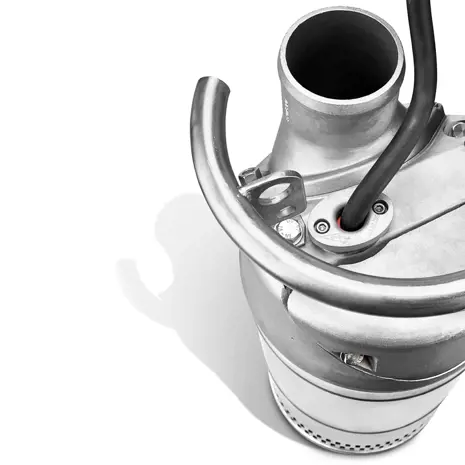

Flygt BS 2750
Flygt BS 2750 is an electric-submersible, corrosion-resistant dewatering pump, built to withstand the toughest job sites with corrosive and/or abrasive pump liquid, including mines, industries and public utilities.
The Flygt 2700 series of pumps handle flows over 1,800 USGPM (50 l/s) and heads to 200 ft (65 m). Available with power ratings from 3 to 13 HP (2 to 8 kW), these portable drainage pumps are made of 316 stainless steel and will handle extreme environments and unpredictable pH variance.
Product Features
- All parts in 316 stainless steel
- Nitrile rubber on wear parts
- Can handle pH variations between 2-10
- Modular design
Optimized for extreme environments and unpredictable pH variance
The corrosion resistant Flygt 2700 pump range from Xylem provides flexible and cost effective dewatering solutions for corrosive and abrasive environments. The range consists of both drainage and solids handling pumps, which are all made of stainless steel and can handle a pH range of 2–10.
The Flygt 2700 pumps are optimised for tough applications in mines, industries and public utilities where the pumped liquid is corrosive and abrasive. The uniform design – which incorporates a minimum of components – makes each pump both robust, easy to handle and service and keeps down the cost of spare parts handling. Thanks to its slim profile, it fits easily into confined spaces.

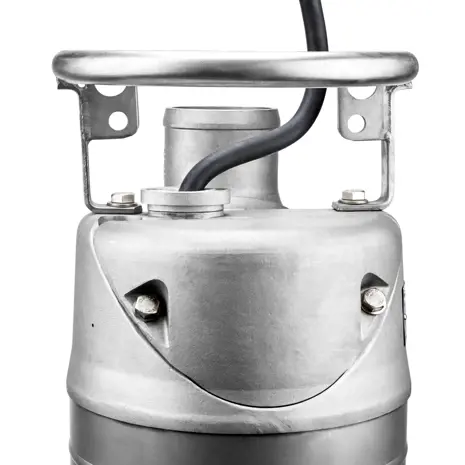

A convenient ring-shaped handle gives good manoeuvrability during installation, and serves as a sturdy stand when you invert the pump for service. The pumps are built to keep on working year in year out. We guarantee availability of spares parts for 10 years after we stop production of a pump model. With a network of suppliers and service centers throughout more than 150 countries, Xylem can offer you the support and service you require.
Flygt BS 2750
Corrosion resistant drainage pump for tough applications and unpredictable pH variance
Process data
| Liquid temperature | max +40°C |
| Depth of immersion | max 20 m |
| Liquid density | max 1100 kg/m³ |

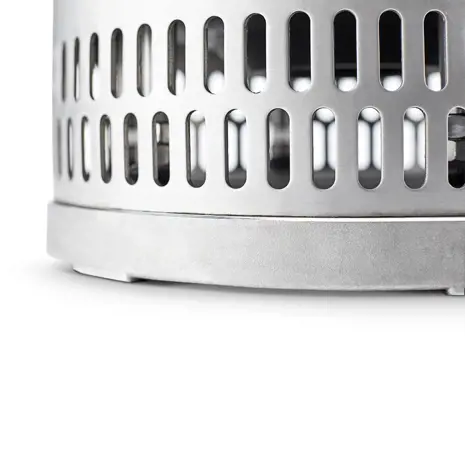

| Strainer hole size | 25 mm × 7 mm |
| The pH of the pumped liquid | pH 2–10 |
Denomination
| Product code | 2750.390 |
| Installation | S |
| Discharge connection | 4″ (MT), 3″ (HT) |
| Impeller characteristics | MT, HT |
Motor data
| Frequency | 50 Hz |
| Insulation class | F (+155°C) |
| Voltage variation | |
| – continuously running | max ± 5% |
| – intermittent running | max ± 10% |
| Voltage imbalance | |
| between phases | max 2% |
| No. of starts/hour | max 15 |
Materials
| Impeller | Stainless steel |
| Wear parts | Nitrile rubber |
| Stator housing | Stainless steel |
| Strainer | Stainless steel |
| Shaft | Stainless steel |
| O-rings | Fluorinated rubber |
Surface treatment
| No surface treatment |
Mechanical face seals
| Inner | Carbon/Silicon carbide |
| Outer | Silicon carbide/Silicon carbide |
Monitoring equipment
| Thermal contacts opening | |
| temperature | +130°C |
Cables
| SUBCAB® | 4G2.5+2×1.5 |
| 4G4+2×1.5 | |
| 7G2,5+2×1,5 |
Weight and dimensions
| Weight (excl. cable) | 90 kg |
| Height | 780 mm |
| Width | 280 mm |
Accessories
Adapters, hose connections and other mechanical accessories. Electrical accessories such as pump controller, control panels, monitoring relays, cables.

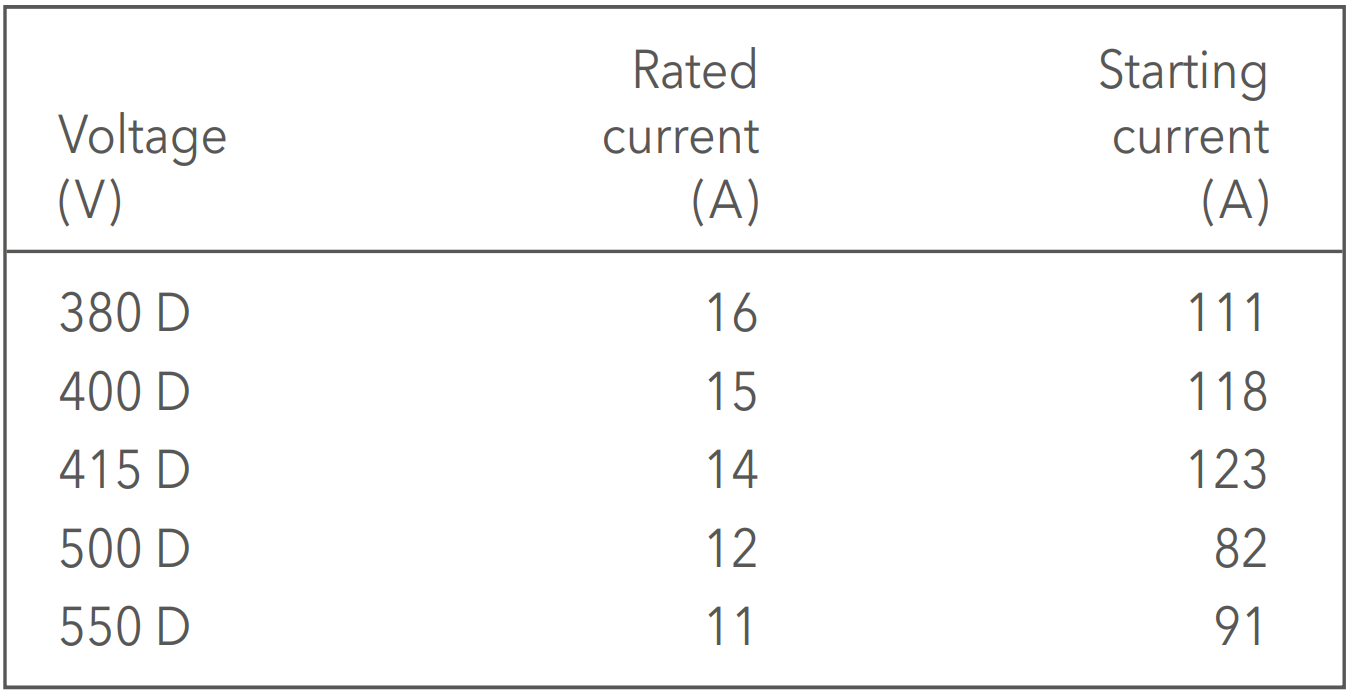

Rating
| 3~ | |
| Rated output | 8.0 kW |
| Speed of rotation | 2 855 rpm |
Option
Starters
